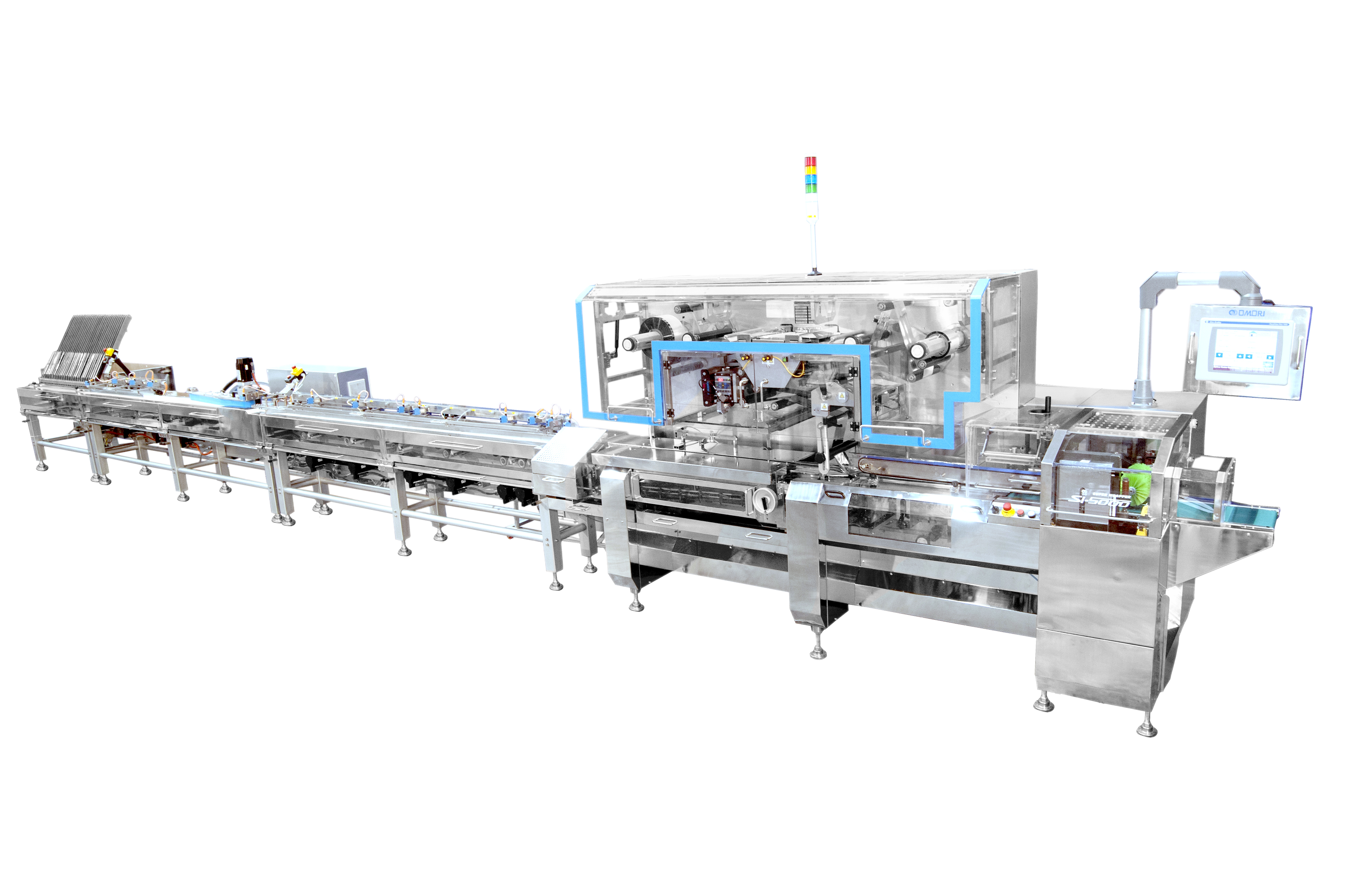

Choco Wrap

Flow wrap solution with Oblique Angle Feeding System for wrapping single bars or tablets at speeds up to 500ppm with cold seal wrapper. Fully Servo-controlled & Stainless Steel version optional.

Top Transfer Model

For High speed application and softer product, machine with positive product transfer system is available, max. speed 500 packs per minute.
Solid Model

Versions:

  • Right-Left/Left-Right
  • Standard/Stainless Steel
  • Mechanical/Servo




  • Designed for long term reliable operation
  • Separate Panel for all around machine easy accessibility
  • All bearings sealed for life
  • Designed for easy sanitation
  • Chilled water circulation system
  • Special design fin seal compartment with 4-fin roller/wheel unit (1 cold, 2 heated, 1 fold over)
  • Special jaw profile for high integrity sealing
  • Temperature control of sealing units through PLC
  • Auto roller/wheel opening
  • Dwell adjustment in running condition
  • Food contact parts from stainless steel and food grade plastics
  • Transparent jaw guards with safety interlock
  • System to stop machine in open jaw condition
  • User-friendly HMI with process diagnostics
  • Adjustable height
  • 24x7x365 telephone support availability
  • "Rapid response" onsite production support availability
  • Training In-plant/Offsite availability
  • Two-way print mark registration and control
  • Positive wrapper feed drive
  • Registered auto splicing
  • Auto web alignment
  • Air extraction
  • Air jet / mechanical gusseting
  • Zig-zag knife
  • End folding device
  • Counting, auto collation & separation at outfeed
  • Extended infeed and outfeed conveyors
  • Auto rejection of joint and empty packs
  • No product – No bag
  • Stainless steel guards and covers
  • Pillow wrapping & String cutting on Single Head
  • Second cutting head
  • Full CE mark
  • Touch screen HMI
  • Remote process diagnostics (direct connectivity)
  • Extended in-plant "live production" support
  • Preventive maintenance contract
Parameter Oblique Model Oblique with Top Transfer Model
Speed 330 packs per min 500 packs per min
Product width 15mm – 60mm 15mm – 30mm
Product height 4mm – 25mm 5mm – 25mm
Product length 40mm – 120mm 30mm – 100mm
Product width + height <75mm <55mm
Wrapper cutoff length 80mm – 180mm 70mm – 160mm
Max reel width 280mm 280mm
Max reel diameter 340mm or maximum weight of wrapper roll <= 20 Kg 340mm or maximum weight of wrapper roll <= 20 Kg
Input voltage 415/380V, 50/60Hz 415/380V, 50/60Hz
Machine size L 5.5m x W 2.1m x H 1.9m L 5.5m x W 2.1m x H 1.9m
Weight 2000Kg 2000Kg
Max. linear speed of wrapper film heat sealable film depends upon type of film and constructionmax. 50 mts/min cold sealable wrapper, max. 85 mts/min

Please contact us to discuss requirements that differ from the above specifications.

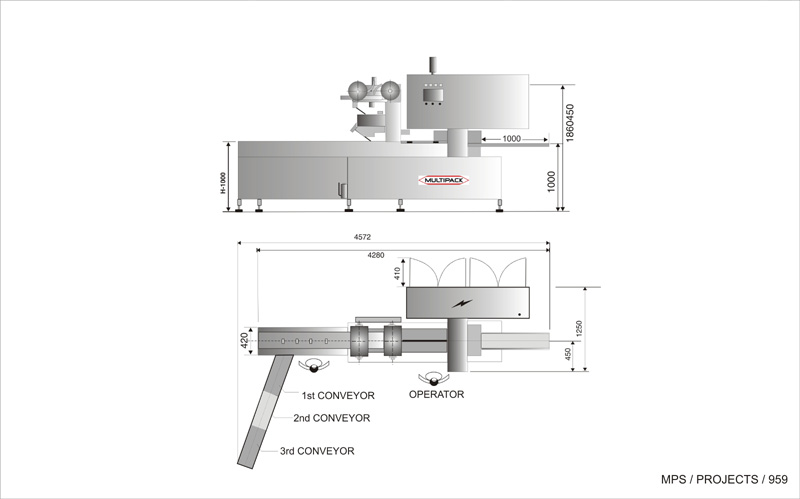

Request Us    Drawing 1
