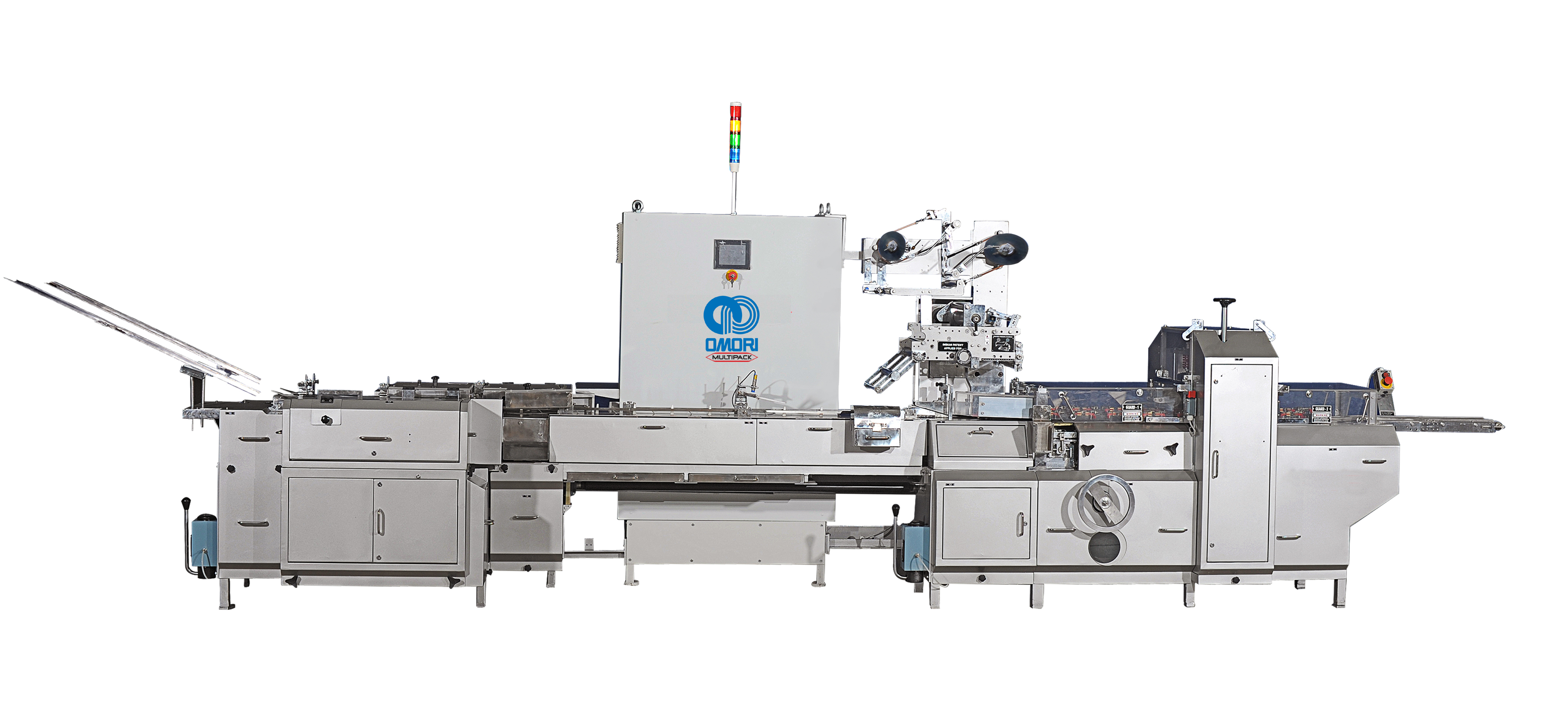

Slug Wrap

Flow wrap solution integrated with “Two lane” Auto feeding system for packing biscuits standing on edge in slug format at speeds up to 140ppm for 120mm slug up to 180ppm for small size slug. Space and labor optimizing solution.

Versions:

  • Right-Left/Left-Right
  • Standard/Stainless Steel
  • Mechanical/Servo




  • Constructed for reliable operation in tough plant conditions
  • Separate Panel for all around machine easy accessibility
  • All ball bearings lubricated & sealed for life-time use
  • Automatic slug separation
  • Flexible front lug on infeed chain assembly for gentle slug handling
  • 3 fin roller/wheel unit (1 cold & 2 heated )
  • Special side chain assembly for effective slug control through sealing operation
  • Temperature control of sealing units through PLC
  • Special jaw profile for high integrity sealing
  • Auto roller/wheel opening & closing
  • Dwell adjustment in running condition
  • Food contact parts from stainless steel and food grade plastics
  • Transparent jaw guards with safety interlock
  • System to stop machine in open jaw condition
  • User-friendly HMI with process diagnostics
  • Adjustable height
  • 24x7x365 telephone support availability
  • “Rapid response” onsite production support availability
  • Training In-plant/Off-site availability
  • Two-way print mark registration and control
  • Positive wrapper feed drive
  • Registered auto splicing
  • Auto web alignment
  • Date coder provision
  • Air extraction
  • Zig-zag knife
  • End folding device
  • Counting, auto collation & separation at outfeed
  • Extended infeed and outfeed conveyors
  • Auto rejection of joint and empty packs
  • No product – No bag
  • Stainless steel guards and covers
  • Full CE mark
  • Touch screen HMI
  • Remote process diagnostics (direct connectivity)
  • Extended in-plant “live production” support
  • Preventive maintenance contract

The data given below is for different standard models. However, MPS has models to cover wider stack for Ex. double cracker, Soda cracker etc.. for technical data of such models forward your inquiry.

  Standard Super Super HS
Max.Mech.Speed 120 packs per min 160 packs per min 180 packs per min
Machine Size range:
Stack width 40mm – 75mm 40mm – 75mm 40mm – 63mm
Stack height 30mm – 70mm 30mm – 70mm 30mm – 63mm
Stack length 60mm – 250mm 60mm – 165mm 54mm – 120mm
Product width + height <125mm <125mm <125mm
Wrapper cutoff length 120 – 350mm 120 – 250mm 120 – 220mm
Max reel width 280mm 280mm 280mm
Max reel diameter 340mm 340mm 340mm
Power 4KW 4KW 4KW
Input voltage 415/380V, 50/60Hz 415/380V, 50/60Hz 415/380V, 50/60Hz
Machine size L 7.3m x W 2.0m x H 1.9m L 7.3m x W 2.0m x H 1.9m L 7.3m x W 2.0m x H 1.9m
Weight 2100Kg 2100Kg 2300Kg
The data above is a general guideline. Actual production speed will depend upon product size and characteristics, proficiency of feeding, and wrapper characteristics. The production speed will also be lower than mechanical speed stated above if one or more factors are close to the range limits.
We have supplied models to cover various ranges of speed and biscuit size, number of piles and wrapper cut-off lengths. Please provide us your requirements of biscuit dimensions, pack configuration and production volume. This will help us provide you the options most suited to your requirement.
