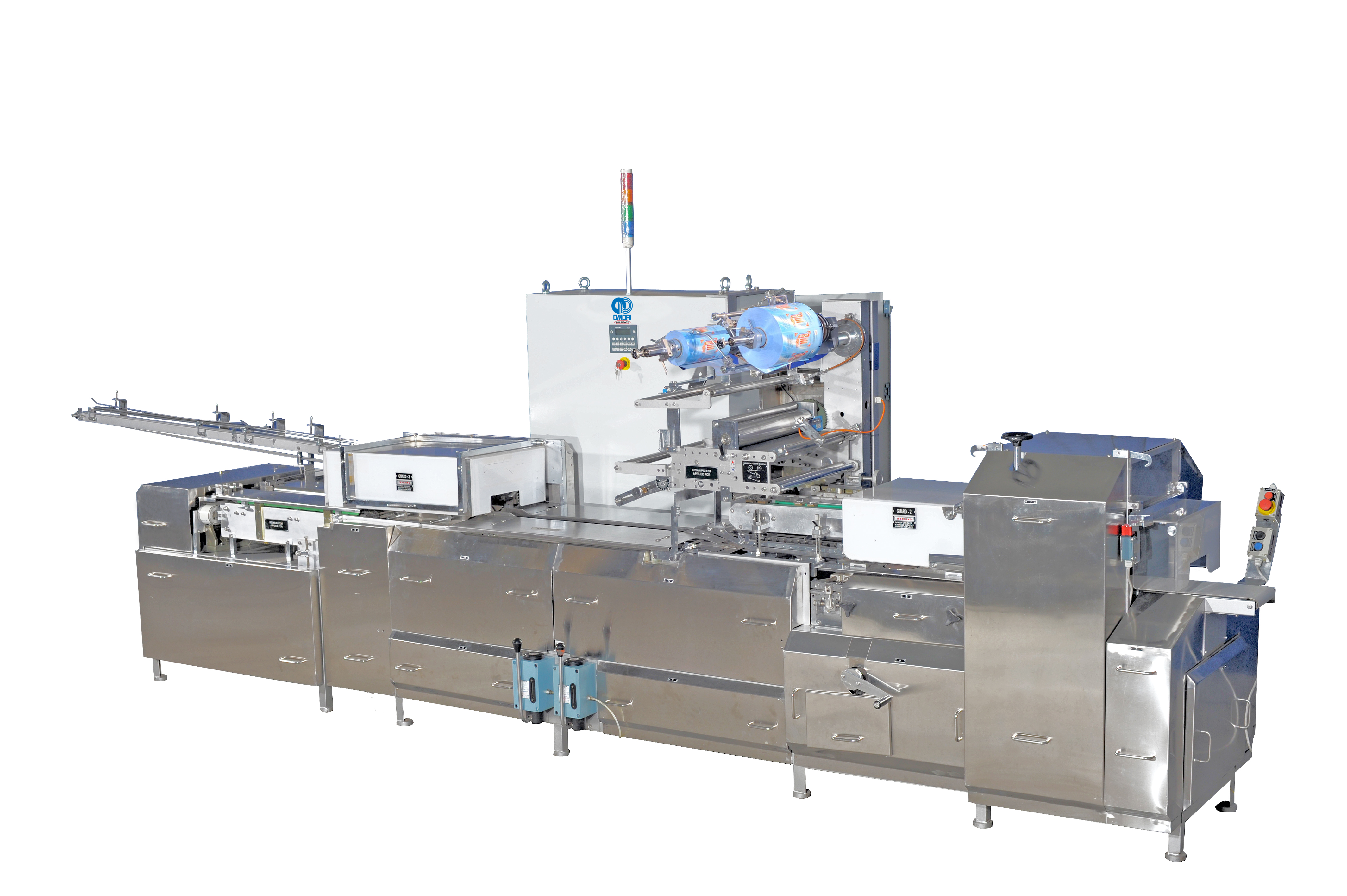

Jumbo Wrap

Flow wrap solution for packing two or more rows of biscuits on edge without tray at speed up to 120 rows per minute. Available with automatic single or multi lane feeding systems.

Versions:

  • Right-Left/Left-Right
  • Standard/Stainless Steel
  • Mechanical/Servo
  • Flight Bar Conveyor for Cream Variety




  • Constructed for reliable operation in tough plant conditions
  • Separate Panel for all around machine easy accessibility
  • All bearings sealed for life
  • Auto row collation and stack loading
  • Top transfer chain to maintain row alignment
  • Pack transfer conveyor through sealing jaws
  • Special design fin seal compartment with 4 fin roller/wheel unit (1 cold, 2 heated, 1 fold over)
  • Temperature control of sealing units through PLC
  • Special jaw profile for high integrity sealing
  • Auto roller/wheel opening
  • Dwell adjustment in running condition
  • Food contact parts from stainless steel and food grade plastics
  • Transparent jaw guards with safety interlock
  • System to stop machine in open jaw condition
  • User-friendly HMI with process diagnostics
  • Adjustable height
  • 24x7x365 telephone support availability
  • "Rapid response" onsite production support availability
  • Training In-plant/Offsite availability
  • Two-way print mark registration and control
  • Positive wrapper feed drive
  • Registered auto splicing
  • Auto web alignment
  • Date coder provision
  • Air extraction
  • Air jet gusseting
  • Zig-zag knife
  • End folding device
  • Counting, auto collation & separation at outfeed
  • Extended infeed and outfeed conveyors
  • Auto rejection of joint and empty packs
  • No product – No bag
  • Stainless steel guards and covers
  • Full CE mark
  • Touch screen HMI
  • Remote process diagnostics (direct connectivity)
  • Extended in-plant "live production" support
  • Preventive maintenance contract
Max output 120 rows per min
Product stack width 50mm – 165mm
Product stack height 35mm – 70mm
Product stack length 80mm – 260mm
Product width + height <235mm
Wrapper cutoff length 140mm – 360mm
Max reel width 500mm
Flight bar conveyor length 3000mm
Power 6KW
Input voltage 415/380V, 50/60Hz

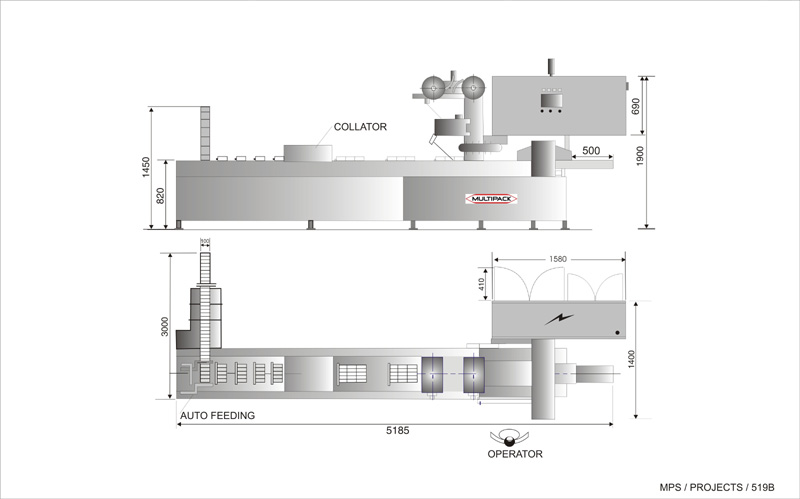

Machine size L 7.0m x W 2.0m x H 2.0m
Weight 2000Kg
Please contact us to discuss requirements that differ from the above specifications.
